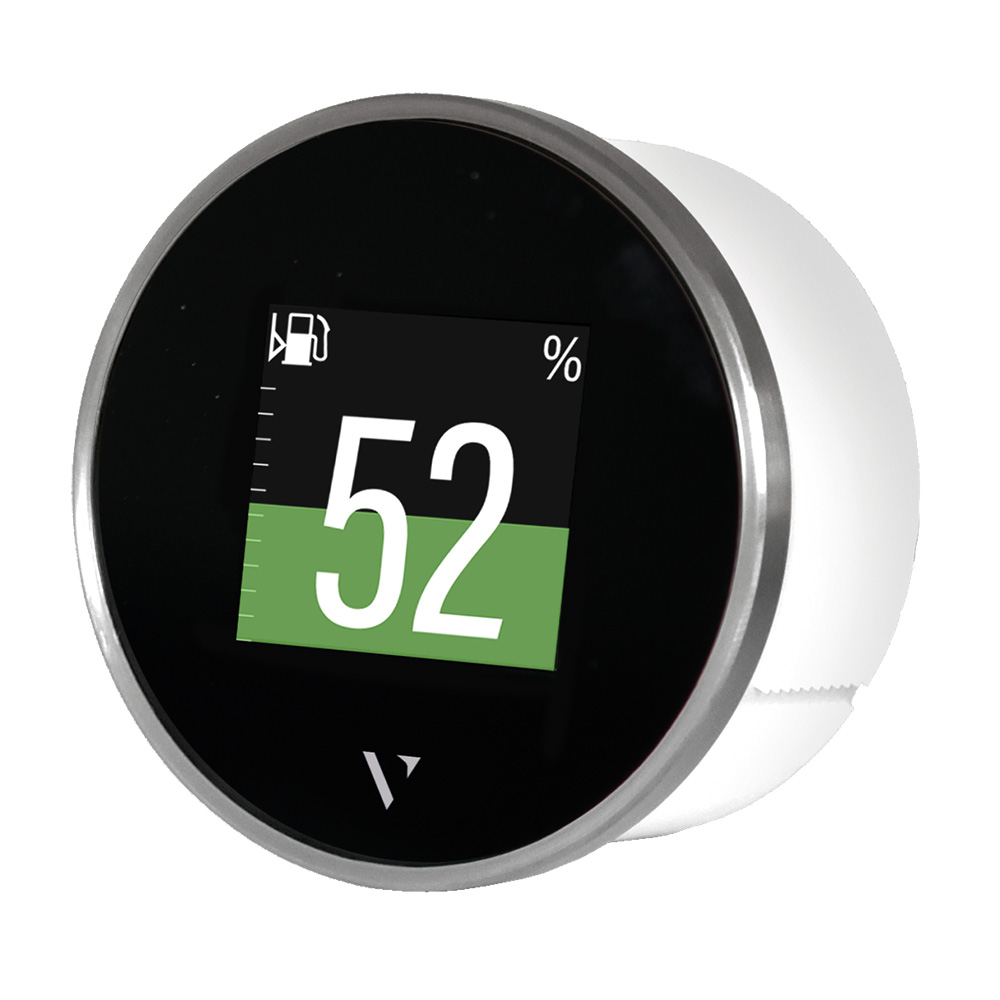

52mm (2-1/16") VMH Flex Multifunction Gauge – J1939
Small but powerful, the VMH Flex is the perfect compromise to display a large amount of boat data in a compact device. No matter if you are wearing gloves or if it is raining on your deck, the innovative laser touch button allows you to scroll up to 5 different screens. Every screen can be freely customized with your most important information, and the setup – including alarms – is easily done with your smartphone just with a tap.
Features:
- Up to 5 scrollable screens in single or dual layout
- Functions – Rudder, Trim, Speed, Engine revolution, Engine hours, Fuel level, Fresh water level, Wastewater level, Coolant temperature, Oil temperature, Engine oil pressure, Transmission oil pressure, Boost pressure, Depth, Clock, Compass, Battery
- Innovative laser touch-button reliable in every practical condition
- SAE J1939 connectivity
- 2x analog resistive inputs for direct sensor connections
- LIN port for Intelligent Battery Sensor
Technical Specifications:
- Nominal Voltage – 12/24V
- Operating Voltage – 9-32V
- Protection Class – IPX7
- Dimensions – 60mm (outer), 52mm (mounting hole)
- Display – 1.44" sun-readable color TFT display
- Resolution – 125 x 125 pixels
- Analog Inputs – 1x resistive, 1x frequency
- Connectors – Tyco / Hirschmann MQS connector 8-pin
- Digital Ports – J1939, LIN bus
- Wireless Interface – NFC
In the Box:
- 1x VMH Flex – J1939
- 1x 52 mm Spinlock Nut
- 1x Rubber Sealing Gasket
- 1x Wiring Harness – J1939
- 1x Safety Instructions and Veratron Card
