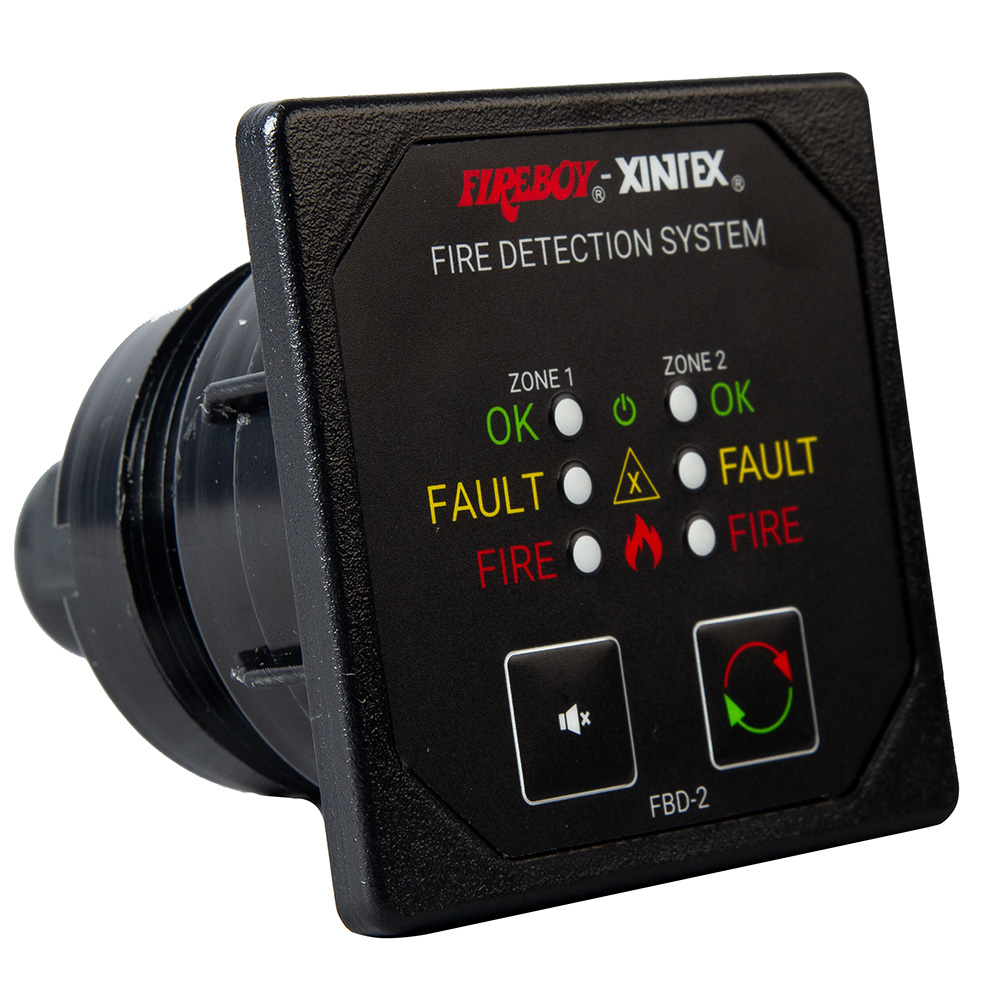

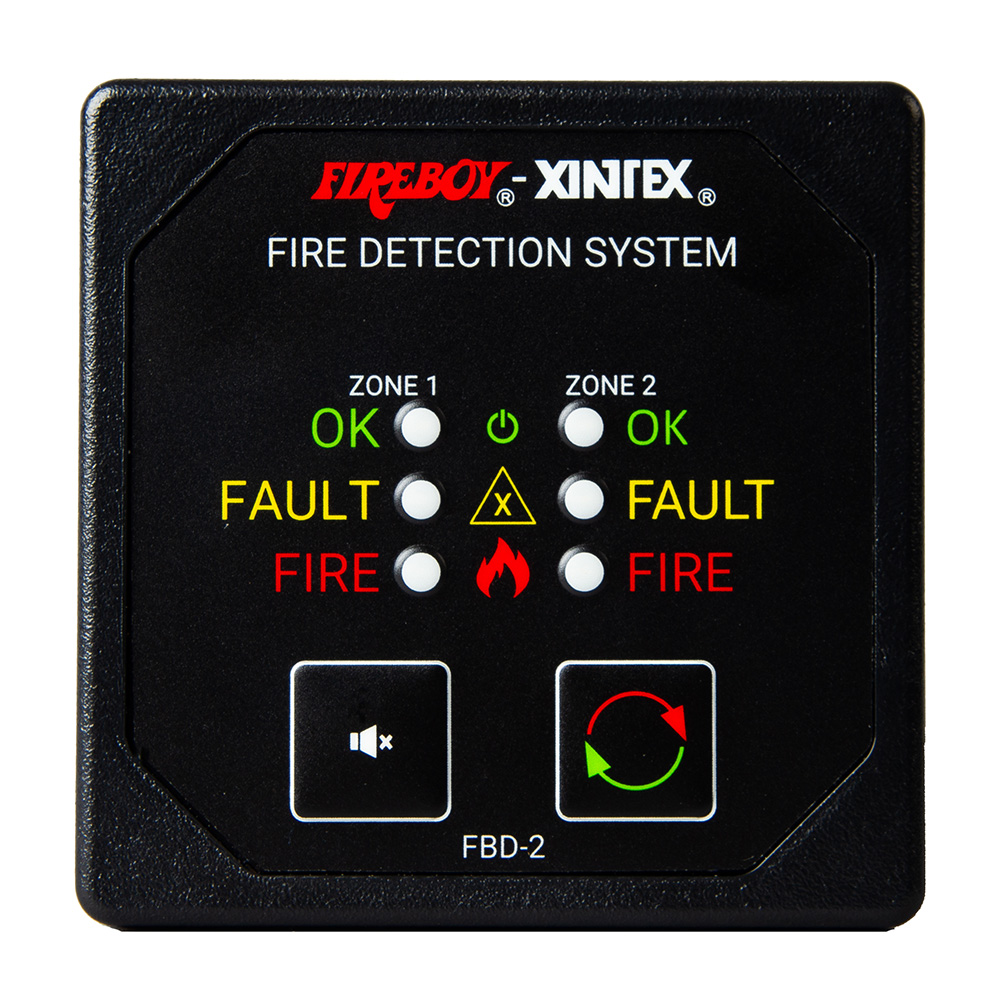

Fireboy-Xintex Two Zone Detection & Alarm Panel – 2-5/8″ Display – 12/24V DC

Two Zone Detection & Alarm Panel – 2-5/8″ Display – 12/24V DC

Each system consists of a monitor panel and up to 14 smoke or heat detectors and/or rate of rise heat detectors connected to each zone (sold separately.)

Features:

• Visual and audible indications of a fire or fault
• Water resistant display
• Voltage and EMI protected
• Reverse polarity protected

Specifications:

• Supply Voltage: 9-32V DC
• Zone Loop Voltage: 24V DC (regardless of input voltage)
• Minimum Alarm Current: 15mA
• Maximum Current Per Zone: 400mA
• Maximum Sensors Per Zone: 8
• EOL Resistor: 5.6kΩ
• Potential Free Transistor Output (Fault, Alarm): 50V max
• Relay Output (Buzzer): 2A
