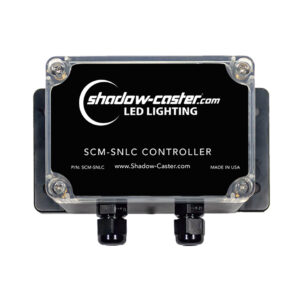

Shadow-Caster Light Commander Multi-Zone Lighting Controller w/Shadow-NET® & N2K – No WiFi or Bluetooth

$734.99

Out of stock

Free USA shipping on all orders over $150*

  • 30 days easy returns
  • Order yours before 1:00pm for same day dispatch
Guaranteed Safe Checkout

Light Commander Multi-Zone Lighting Controller with Shadow-NET® & N2K – No WiFi or Bluetooth

The Shadow-Caster Light Commander NMEA 2000 is a pioneering solution in LED lighting control for boats. This first-of-its-kind product is crafted in compliance with the latest NMEA 2000 lighting control standards, ensuring enhanced lighting control, seamless marine system integration, and improved interoperability.

Control up to 6 lighting zones per module, including 4 zones of RGB or RGBW lights, with ease and precision. Explore, set, and store a variety of lighting scenes – from color change, fade, rotation, and strobe, through to music sync effects, offering versatility and customization to illuminate a boat like never before.

Encased in durable IP67 housing with Deutsch-style IP67 connections, the Light Commander NMEA 2000 ensures reliability and performance in the marine environment. The backlit logo signifies the quality and innovation that SHADOW-CASTER® is renowned for.

Elevate the marine lighting experience with the Light Commander NMEA 2000 – where technology meets functionality and style.

*This version is an MFD multi-zone lighting controller for NMEA 2000 and Ethernet connectivity with an integrated HTML Interface.

Features:

  • NMEA 2000 Backbone or MFD Network Port Connectivity
  • Global control for all lighting
  • Up to 6 separate zones of lighting control – expandable to 12 or 18 by connecting additional SCM-LC-N2K modules
  • 6 “Instant ON” switch inputs for enabling lights without MFD control
  • Supports RGB and RGBW lighting
  • IP67 Water-resistant housing with waterproof connections
  • Deutsch style IP67 rated connections, for clean OEM installations
  • All in one design, no need for a separate MFD communication bridge
  • “Digitally fused” over current protection circuits, 15amps/channel (X4)
  • Backlit logo and zone indicator LEDs to indicate functions and operation
  • Built-in 3.5mm female audio port and microphone for music sync input
  • Multi-zone lighting controller for NMEA 2000 and Ethernet connectivity with an integrated HTML interface

Technical Information:

  • IP67 rated enclosure
  • Power: Supports over 600 watts of RGB lighting and virtually limitless Shadow-NET® connected modules
  • 15 amps per RGB (W) zone, 60 amps max
  • 10 to 30V input range
  • Direct 3.5mm female audio input for music synchronization
  • Music sync created by onboard DSP (Digital Signal Processing)
  • Shadow-NET® bus allows system expandability
  • Digital power protection set at 15 amps/channel
  • Built-in switch inputs for instant lighting for each zone
  • 24-bit color support and gamma correction for universal color support
  • Enclosure: 8.9” (226mm ) x 4.75” (120mm) x 1.8” (46mm)

Additional information

Weight2.3 lbs
Dimensions10 × 6 × 3 in
UPC

850024342248

Mfg. Part Number

Manufacturer

Quick Guide Literature (pdf) Download
Owners Manual (pdf) Download
Brochure Literature (pdf)
Installation Guide (pdf) Download
