Lectrotab XKA Stainless Steel Trim Tab – 9 x 24

Original price was: $1,234.00.Current price is: $1,048.90.

-15%

Actuator Type = Electro-Mechanical | Construction = Stainless Steel

Only 3 left in stock

Free USA shipping on all orders over $150*

  • 30 days easy returns
  • Order yours before 1:00pm for same day dispatch
Guaranteed Safe Checkout

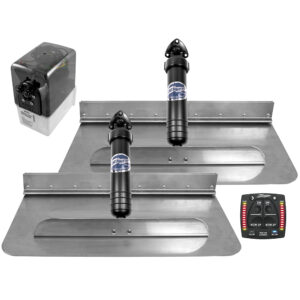

XKA Stainless Steel Trim Tab – 9 x 24

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability.  All stainless steel tabs are fabricated with a continuous rolled and pinned hinge.  This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design.  The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation.  The actuator assembly is packaged in a non-metallic permanently sealed housing.  No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out.  The actuator incorporates either a standard or low profile transom mounting bracket.

*Control switch not included

Features:

  • Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
  • Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
  • Utilizes internal pressure equalization system
  • Internal brake system prevents unwanted tab movement when under way or backing down
  • Quiet operation
  • Actuators are fully load tested to push 1000 lbs of force
  • Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

  • Trim Tab Size (L x W) – 9″ x 24″ (23 x 61 cm)
  • Boat Length – 24′ to 37′ (7 to 11 M)
  • Trim Tab Material – 12 gauge, 304 Stainless Steel
  • Actuator DC Voltage – 12 V
  • Actuator Stroke Length – 2.25″ (57 mm)
  • Actuator Cable Length  – 23′ (7 M)
  • Actuator Vertical Height – 11.875″ (302 mm)

In the Box:

  • Two (2) Stainless Steel tabs
  • Two (2) actuators w/23′ (7 M) cables
  • Instruction Manual

*Sold as an Individual

Additional information

Weight27.2 lbs
Dimensions25 × 16 × 5 in
Mfg. Part Number

Manufacturer

Quick Guide Literature (pdf) Download
Owners Manual (pdf) Download
Brochure Literature (pdf) Download
Installation Guide (pdf)
